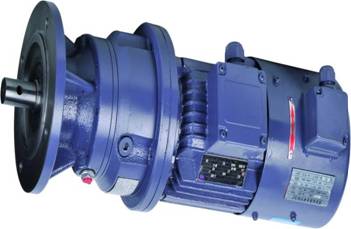

G800 機械減速機配螺桿泵一些特點

The features of G800 mechanical reducer with screw pump

1.    承載轉矩大:G800系列采用行星齒輪結構,多齒嚙合,輸入功率分流傳動,受力對稱,因而能承受較其他減速機更大的超負載力矩,螺桿泵在啟動時往往有過載現象,因此在對減速機配套選型時,工作系數可適當減小。

Large bearing torque: G800 series have planetary gear structure, multi-tooth engagement, symmetry force, thus input power transfer to different driving force. And the working torque is greater than other reducers. Screw pump sometimes overload at the start-up stage, so, work coefficient can be reduced properly.

2.    工作可靠,壽命長:G800內部件,大都經磨削加工,結構相對封閉, 工作時不易受外部環境影響,采用優質潤滑液的狀況下,有很長的壽命。

Reliable and long working life: most of the internal pieces of G800 are grinding, have relatively close structure. It is less susceptible to the external environment. By using god lubricant, the working life can be quite long.

3.    結構緊湊,體積小而美觀:由于行星結構主體為柱狀,與螺桿泵的結構相似,成套部件美觀大方,特別是采用減速機為立式結構時,更與螺桿泵渾然一體

Compact structure and small size: the main structure is columnar structure, which is similar to screw pump. The whole structure is seamless.

4.    通用性能更強:由于電機與減速機采用標準聯接,常用標準電機均可作為減速機的動力源,用戶維護保養檢修極為方便,當用戶根據需要 可方便地更換不同的電機,如掉換變頻、防爆電機等來滿足不同的工況要求。

Good general performance: as the motor and reducer are standard connected, the motor can be used as the power source. It is quite convenient to maintain and change. According to different needs, the motor can be easily replaced in order to meet the different working requirements.

5.    經濟性好:由于G800 螺桿泵專用減速機,其輸出結構已設計了承受螺桿泵工作時的軸向推力,所以可以減少泵類的軸承座部件,不僅省成本而且結構又可靠合理。

Economy: because of the special design of the G800 mechanical reducer with screw pump, the bearing housing parts can be reduced. Thus, the cost is reduced and the structure is more reliable.
